Optics

Beam aperture: 3.5°

82% optic efficiency

5 x 94 mm PMMA collimator optic

Light source

5 x 1,000 lumens RGBW High-Power LED source

Light output: up to 4,000 lumens

Rated life (L70): up to 40,000 hours

Flicker free sources management, suitable for TV applications and all video recorded events

Colours

Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index

Light beam with no colour shadows, and rich saturated and pastel colour-hues

4.29 billion colours (8 bit resolution)

Virtual colour wheel, including most usuals white colour temperature presets

Dynamic colour macro effect with variable speed

Effects

2D & 3D graphical effects capabilities

Effects can be coupled with beam, wash or matrix applications

Built-in pattern effects with speed and fade controls for scenic applications

Dimmer / strobe

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation

White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

Software features

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel

Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller

Information menu including hour counter, temperature, software version

Hardware features

Graphic LCD display for addressing and special functions settings, with flip function

6 menu buttons to set the functions

Excess temperature protection

Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™

XLR 5 pin male and female connectors for DMX connection

powerCON TRUE1 male and female connectors for power connection

Control

DMX 512 protocol, through DMX cable or wireless system

DMX-RDM compatible

Stand-alone mode and Master/Slave modes

ArtNet™ & sACN protocol through Ethernet cable

Local control panel, with LCD display

Choice of 3 DMX Modes (from 6 to 29 DMX channels)

Power supply

Electronic supply with active PFC

100 to 240 Volts – 50/60 Hz

Power 250 W maximum

Cooling system

Advanced cooling system

Self adjusting variable speed fans for quiet operation (Auto mode)

Selectable auto, stage & studio ventilation modes

Safety protection against temperatures excesses

Housing

Body made of aluminium and steel metal plates

Heatsinks in aluminium, satin finish

Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)

Single yoke in aluminium

IP20 protection rating

Exterior finish: black (Carbon)

Installation

4 fixing points for multiple products assembly

1 rotating handles to ajust yoke

Self-alignment via optional positionning system

Safety cable attachment point

Operating parameters

Operating positions: all (device on floor or fixed to a support)

Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)

Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)

Minimum usage distance: 5.0 m (16.40 ft)

Compliance

EU (EMC):

EMC Directive 2014/30/EU

EU (LVD):

LVD Directive 2014/35/EU

US Safety:

UL 1573

Size

Product: 676 x 300 x 285 mm (l x h x d)

Flight-case foam: 750 x 325 x 220 mm (l x h x d)

Weight

Product: 8.7 kg

Product codes

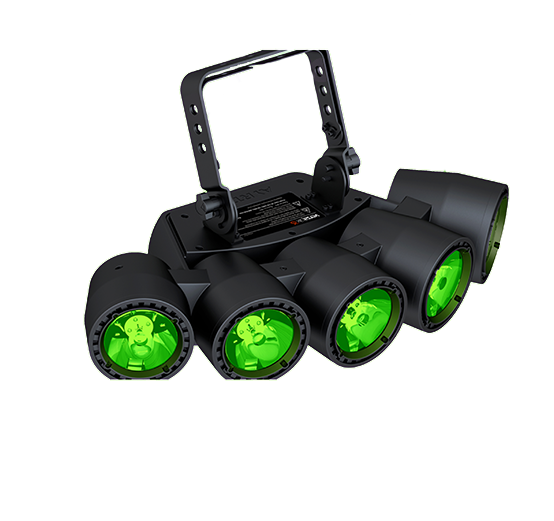

018550: VERSAPIX-RS CREATIVE SOLUTION
