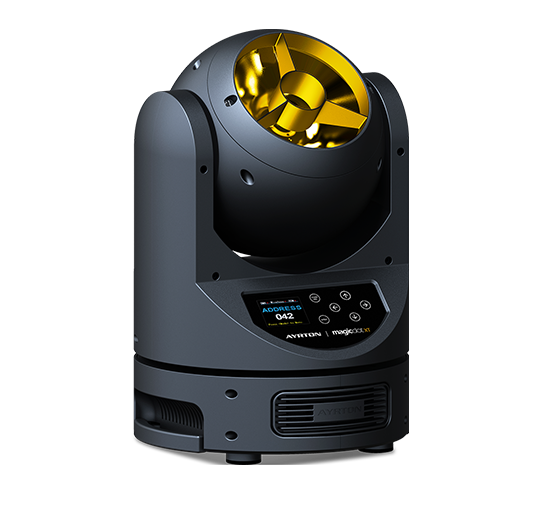

MAGICDOT XT is a radical variant of the revolutionary MAGICDOT R. It is fitted with
the AYRTON’s new and proprietary 126 mm diameter optic – which distinguishes the
“XT” product line. Weighing in at 550 grammes, this new high-efficiency lens is the
world’s largest collimator! Combined with an ultra-powerful, low-etendue, RGBW
multichip LED emitter, MAGICDOT XT pushes the limits of technology even further
with a 2° full beam and centre-beam luminous intensity of 580 candelas per lumen
– six times greater efficiency than MAGICDOT R. With an active phase-change liquid
cooling system that employs a heat pipe, this luminaire can be used continuously
without significant loss of output.
The minimalist cylindrical design of the MAGICDOT XT is a scaled-up version of
MAGICDOT R. The new luminaire sports all same features, including ultra-rapid
movement and continuous, unlimited, rotation on pan and tilt. The compact footprint
permits multiple MAGICDOT XT luminaires to be installed with a minimum amount of
space between them. In addition to standard DMX-RDM connectors, MAGICDOT XT
can be controlled via wireless CRMX TiMo RDM from LumenRadio™.
