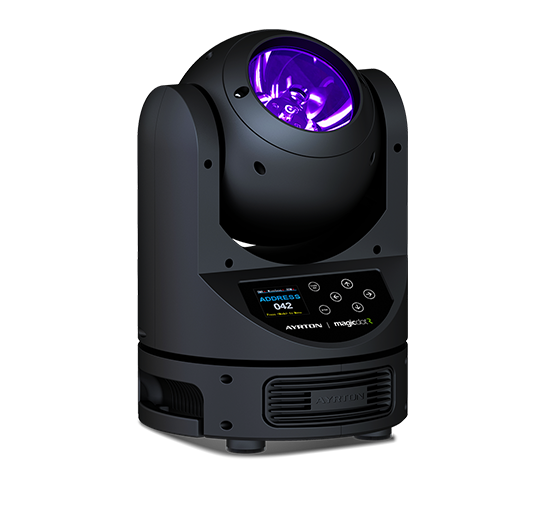

A new member of the RADICAL product line, MAGICDOT R is the first
professional moving head LED luminaire with a single optical collimator. The new
high-efficiency optical system measuring 94 mm in diameter and weighing over
200 grammes required more than two years of development and perfection. The
result is an intense beam of less than 5° using a multi-chip RGBW LED with a
light-emitting surface of 8 mm2
. With its minimalist cylindrical design, the innovative
MAGICDOT R, capable of continuous double rotation on the pan & tilt axes, allows
the user to create groups of luminaires and control each light emitter individually in
all directions. Leaving a minimum amount of space between multiple luminaires will
make it possible to create configurations never before dreamt of.
Highly compact, light, ultra-fast and powerful, the MAGICDOT R is equipped
with a new 60 W RGBW multi-chip LED emitter paired with a 94 mm high
efficiency collimator. The fixture offers an overall luminous flux of 1,600 lumens
and a luminous intensity of 180,000 candela for an overall consumption of only
130 W. This new high-power LED source has required implementing a special
phase-change liquid cooling system using a heat pipe. MAGICDOT R is the ideal tool
for creating moveable virtual sets and complex light compositions with multiple beams.
