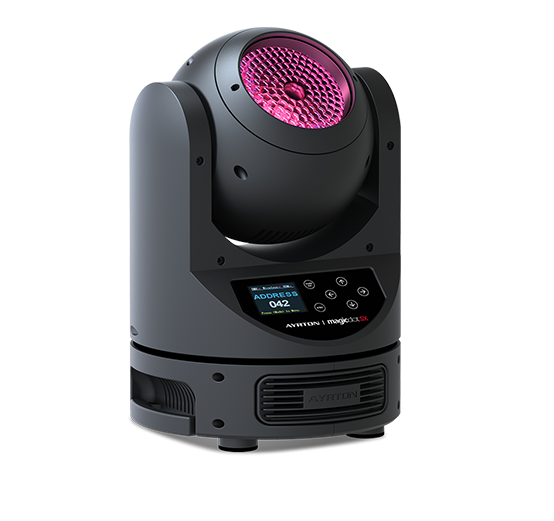

MAGICDOT SX is an optically evolved, multipurpose, variant of MAGICDOT R, with the
same form factor, dimensions and features, including ultra-rapid beam movement and
continuous, unlimited, rotation on pan and tilt. The compact footprint allows multiple
MAGICDOT SX luminaires to be installed with a minimum amount of space between
them (patent pending). This new luminaire replaces the 4.5° fixed-focus optics with
a revolutionary new 8:1 optical zoom that has a fixed transmitting lens, no visible
moving parts and a incredible zoom range of 5° to 40° (patent pending). The short
stroke of the zoom system permits MAGICDOT SX to switch from intense beam mode
to sweeping Wash mode virtually instantaneously.
MAGICDOT SX delivers up to 75% optical efficiency in a tight beam, when the 94 mm
diameter collimator is positioned close to the transmitting lens. This ensures great
compatibility and graphical interactivity with MAGICDOT R units. In addition to DMX-RDM
control, MAGICDOT SX can be controlled via wireless CRMX TiMo RDM from
LumenRadio™. MAGICDOT SX is a versatile tool that meets a vast array of needs
both in stage and architectural applications.
