Light source

4096 Multi-chip RGB LED source

Black PLCC-6 package for higher contrast with diffused silicone resin

Viewing angle: 120° lambertian emitter

Pixel resolution: 64 x 64

Pixel pitch (mm): 6

Brightness (nit or cd/M2): 3,500

Rated Sources life: up to 50,000 hours

Flicker free sources management, suitable for TV applications and all video recorded events

Movement

Extremely accurate positioning

Moving-head operated via either 8- or 16-bit resolution

High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.

Moving-head range: infinite pan and tilt rotation

Colours

16.7 million colours

8 bit colour control

14 bit internal colour control

Colour calibration of each pixel to achieve a perfect colour evenness of the entire panel

Software features

Panel software features access via DREAMPANEL HD-BOX controller

Geometric panel configuration via HDMI DREAMPANEL MANAGER

DVI & HDMI video format ingress via DREAMPANEL HD-BOX controller

System fully compatible with all media systems (media server) with scale-downed image size (scaling mode) and image rotation capabilities via DREAMPANEL HD-BOX controller

Internal software update via DREAMPANEL HD-BOX controller

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel

Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller

Information menu including hour counter, temperature, software version

Hardware features

Graphic LCD display for addressing and special functions settings, with flip function

6 menu buttons to set the functions

Excess temperature protection

Neutrik® HDMI 1.3a IN / OUT connectors for HDMI connection

etherCON RJ45 IN / OUT connectors for ArtNet™ connection

powerCON TRUE1 male and female connectors for power connection

Control

DMX 512 protocol through Ethernet cable only

DMX-RDM compatible

ArtNet™ & sACN protocol through Ethernet cable

HDMI protocol through HDMI 1.3a cable

Local control panel, with LCD display

Choice of 3 DMX Modes (from 6 to 8 DMX channels)

Power supply

Electronic supply with active PFC

100 to 240 Volts – 50/60 Hz

Power 200 W maximum

Cooling system

Self adjusting variable speed fans for quiet operation (Auto mode)

Selectable auto, stage & studio ventilation modes

Safety protection against temperatures excesses

Housing

Moving-head skeleton made of aluminium and steel metal plates

Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)

Two sides handles for transportation

Four heavy-duty feet for better stability

IP20 protection rating

Exterior finish: black (Carbon)

Installation

Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clamps

Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire

Safety cable attachment point

Operating parameters

Operating positions: all (device on floor or fixed to a support)

Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)

Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)

Minimum usage distance: 0.5 m (1.64 ft)

Compliance

EU (EMC):

EMC Directive 2014/30/EU

EU (LVD):

LVD Directive 2014/35/EU

US Safety:

UL 1573

Size

Product: 473 x 641 x 307 mm (l x h x d)

Flight-case Foam: 559 x 662 x 367 mm (l x h x d)

Weight

Product: 15.6 kg

Product codes

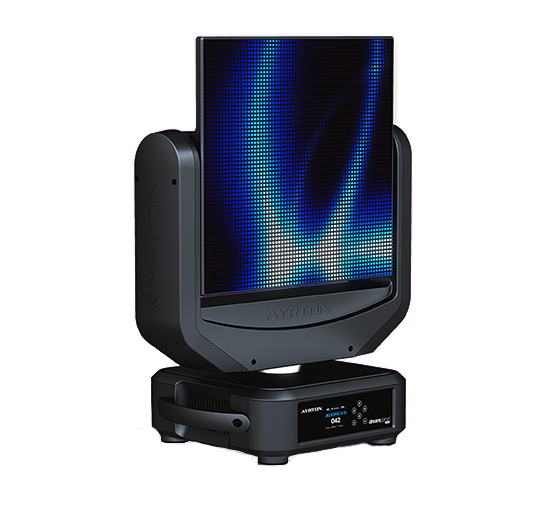

017450: DREAMPANEL SHIFT IMAGINE DISPLAY
