Video inputs

2 x HDMI (type A) Input

720p, 1080i, 1080p @ 50Hz & 60Hz

Active loop-through output of all input signals, including EDID

EDID version 1.3 compatible

Not supported: HDCP, CEC

2 x DVI-D Input

Up to 1920 x 1080 @ 60Hz (148.5MHz pixel clock)

Active loop-through output of all input signals, including EDID

EDID version 1.3 compatible

Not supported: HDCP, CEC

Video outputs

4 x Neutrik® HDMI 1.3a connectors

Proprietary AYRTON format on an HDMI connectors

Large displays can be driven by combining multiple outputs

Each output can drive a different type of AYRTON Imaging Display

HDMI cables as the primary connection to displays up to a maximum cable length of 40m (Cable tested: Klotz HDMI A – HDMI A – Ref: HA-HA-L40)

1 x Neutrik® HDMI 1.3a connector

1080p preview monitor

Remote control

Remote management from Windows software

1 x Ethernet RJ-45 connector

1 x USB-B connector

1 x XLR 5 pin male and female connectors for DMX 512 remote

Internal processing

12 bits per colour

Canvas size: 1920 x 1080 pixels

System latency: 4 frames from input to display, including scaling

Adjustable colour temperature between 2000 and 11000 K

Software facilities

Panel software facilities access via graphic LCD touch screen

Geometric panel configuration via HDMI DREAMPANEL MANAGER

System fully compatible with all media systems (media server) with scale-downed image size (scaling mode)

Image rotation capabilities: 360° by step of 1°

Internal software update

Hardware facilities

Graphic LCD touch screen for control and special functions settings

Status monitoring in the front panel

Power supply Input through powerCON TRUE1 connectors

Power supply

Electronic supply with active PFC

100 to 240 Volts – 50/60 Hz

Power 60 W maximum

Housing

Rack 19” – 2U made of steel metal plates

Front panel in extruded anodized aluminium profile

IP20 protection rating

Exterior finish: black (Carbon)

Operating parameters

Operating positions: mounted in a 19” rack

Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)

Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)

Compliance

EU (EMC):

EMC Directive 2014/30/EU

EU (LVD):

LVD Directive 2014/35/EU

Size

Rack 19” – 2U

Product: 481 x 88 x 295 mm (l x h x d)

Weight

Product: 4.3 kg

Product codes

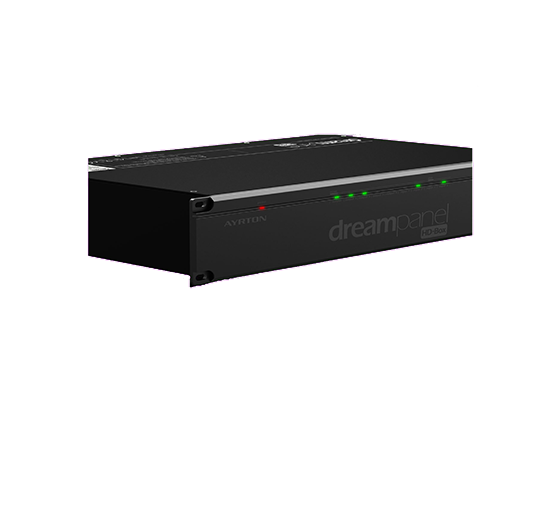

028830: DREAMPANEL HD-BOX IMAGINE DISPLAY
