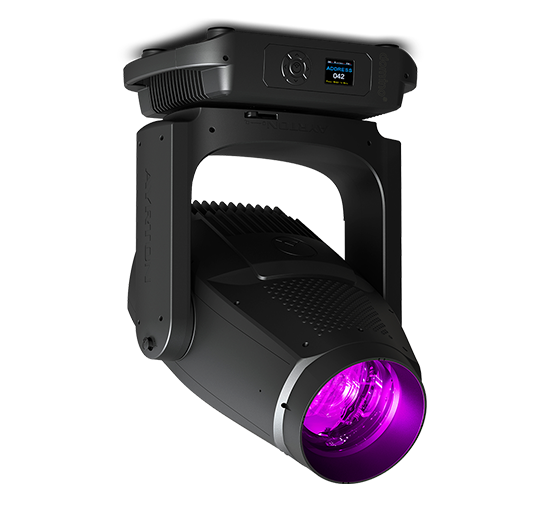

A new member of AYRTON’S IP65 multi-function luminaire family designed for intensive
outdoor use, DOMINO PROFILE TC is a marvel of technology that combines extraordinary
light power with full-featured standard equipment. Equipped with an entirely new
1000 W monochromatic high-efficiency LED emitter calibrated at 7000 K, DOMINO
PROFILE TC is specially designed for situations that require perfect colour rendition,
has a native colour rendering index greater than 90 and very high TM30 readings.
Designed around the exceptional optics of HURACÁN PROFILE, this luminaire was
specifically developed to achieve an optimal resolution-to-performance-to-efficiency
ratio. These optics deliver an extremely uniform flat beam with no hot spot and
reproduce high-definition images impeccably. Fitted with a 178 mm frontal lens, the
proprietary optical system uses 13 lenses, producing a 10:1 zoom ratio and a zoom
range of 6° to 60°. Designed to operate in the most extreme situations, DOMINO
PROFILE TC can resist hot or cold temperatures, wind, rain, hail, salt fog, sand and
dust. It can withstand arid environments, heavy rainfall, and sudden climatic variations.
AYRTON has included all the weatherproofing features of PERSEO in this new IP65
luminaire and given it the same minimalist design. With its new high-efficiency power
supply and die-cast aluminium frame, the luminaire uses the same base design in a
reduced visual footprint. For maximum effectiveness, DOMINO PROFILE TC has a liquid
cooling system fitted with six submersible fans outside its weatherproof enclosure.
Feature-rich from the factory, DOMINO PROFILE TC includes a subtractive CMY colour
mixing system combined with a variable CTO and a wheel with six complementary
colours. The framing section allows accurate positioning of each shutter blade on
a 100% surface area. The image section includes 14 interchangeable HD glass
gobos on two wheels. The effects section contains two continuous dynamic effect
wheels, a CMY multi-layered wheel for creating multi-coloured effects, a standard
monochromatic effect-wheel, a 15-blade iris diaphragm, two frost filters (one for light
and one for heavy diffusion), two rotating prisms (one circular with 5 facets and one
linear with 4 facets). DOMINO PROFILE TC is The Master of the Elements, ready for
the most extreme conditions.
