OPTICS

13-elements 10:1 zoom high-resolution optic system

Beam aperture: 6° to 60°

Fast motorised linear zoom

Tempered anti-reflective coated lenses

178 mm frontal lens for greater performance

LIGHT SOURCE

75,000 lumens 8000 K white light engine

Total luminaire output: up to 53,000 lumens

Colour temperature output: 7000 K

CRI: greater than 70

Rated life (L70): up to 40,000 hours

Flicker-free source management suitable for TV applications and all video-recorded events

MOVEMENT

Extremely accurate positioning

Moving-head operated via either 8- or 16-bit resolution

High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement

Pan and tilt automatic repositioning

Moving-head range: 540° (pan), 270° (tilt)

COLOURS

Complex CMY colour mixing system capable of generating  billions colours (patent pending)

Variable CTB colour temperature correction

Variable CTO colour temperature correction

Variable CTP colour temperature correction

Fixed colour wheel with six complementary colours

GOBOS

Indexable rotating double layer cassette wheel with 2 effect cassettes and 5 high-precision glass gobos plus open position

Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position

Adjustable-speed rotating cassette and gobo in both directions

Gobo diameter: 30.0 mm

Image diameter: 25.0 mm

Gobo thickness: 1.1 mm

FRAMING SYSTEM

4 individually positionable shutter blades on a 100% surface area in all positions

Rotation of the framing system module: +/- 45°

IRIS DIAPHRAGM

Fast iris diaphragm with adjustable dynamic effects

Iris range: 15% to 100% open

FROSTS

2 frost filters: one light, one heavy

EFFECTS

Monochromatic multi-position graphical animation effects wheel with continuous rotation in both directions

CMY & RGB colour graphic animation effect-wheel with continuous rotation in both directions

2 rotating and indexable prisms: one 5-facet circular, one 4-facet linear

DIMMER / STROBE

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation

Strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel

Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller

Information menu including hour counter, temperature, software version

HARDWARE FEATURES

Graphic LCD display for addressing and special functions settings, with flip function

Clicking jog wheel to set functions

Excess temperature protection

Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™

XLR 5 pin male and female connectors for DMX connection

etherCON RJ45 IN / OUT connectors for ArtNet™

powerCON TRUE1 male connector for power connection

CONTROL

DMX 512 protocol, through DMX cable or a wireless system

DMX-RDM compatible

Stand-alone mode and Master/Slave modes

ArtNet™ & sACN protocol through Ethernet cable

Local control panel, with LCD display

Choice of 3 DMX modes (from 44 to 70 DMX channels)

POWER SUPPLY

Electronic supply with active PFC

120 to 240 Volts – 50/60 Hz

Power: 1,600 W maximum

COOLING SYSTEM

Advanced liquid cooling system

Self-adjusting variable speed fans for quiet operation (Auto mode)

Selectable ventilation user’s modes with a new Silent Mode

Safety protection against temperatures excesses

HOUSING

Moving-head skeleton made of aluminium and steel metal plates

Base in die-cast aluminium

Heatsinks in aluminium and copper

Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)

Two-side handles for transportation

Four heavy-duty feet for better stability

IP20 protection rating

Exterior finish: black (Carbon)

INSTALLATION

Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clamps

Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire

Safety cable attachment point

OPERATING PARAMETERS

Operating positions: all (device on floor or fixed to a support)

Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)

Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)

Minimum usage distance: 2.0 m (6.56 ft)

COMPLIANCE

EU (EMC & LVD):

EMC Directive 2014/30/EU

LVD Directive 2014/35/EU

US (Safety & EMC):

UL 1573

FCC Part 15, Subpart B: 2018

SIZE

Product: 486 x 811 x 294 mm (l x h x d)

Flight-case foam: 715 x 555 x 630 mm (l x h x d)

WEIGHT

Product: 44.0 kg

PRODUCT CODES

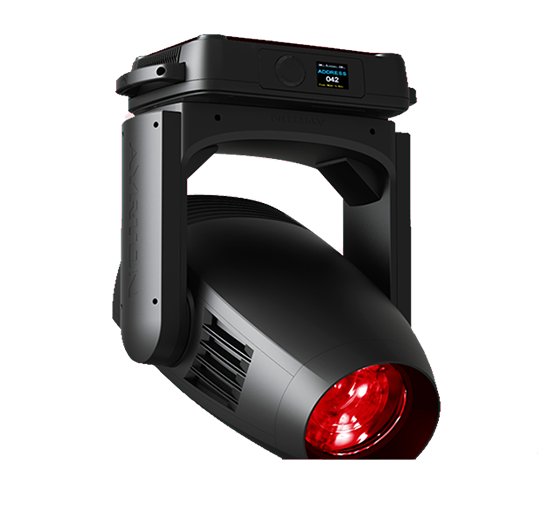

011860: HURACÁN-X – CLASSICAL 9 SERIES
