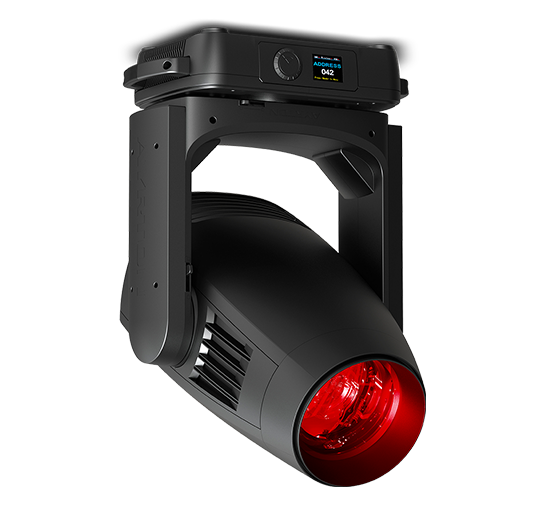

HURACÁN PROFILE S is a marvel of technology that brings exceptional light output
to a standard-equipment luminaire in a class by itself – a formidable graphical tool
for enhancing creativity. Fitted with a next-generation oversized cooling system and
a high-efficiency 1000 W LED module, HURACÁN PROFILE S produces record output
of 51,000 lumens at a colour temperature of 7000 K when operating at a steady state.
For this exceptional luminaire, AYRTON has developed an entirely new complex colour
mixing system with a double CMY saturation level capable of generating 281 trillion
colours (patent pending). A triple variable colour temperature corrector allows subtle
adjustment from 2700 K to 15000 K and offers noticeable CRI improvement. Designed to
project complex graphical effects, HURACÁN PROFILE S boasts specifically developed
optics that deliver an extremely uniform flat beam with no hot spot and reproduce
high-definition images. The proprietary optical system, equipped with a 178 mm frontal
lens, uses 13 lenses, producing an 10:1 zoom ratio and a zoom range of 6° to 60°.
HURACÁN PROFILE S offers an advanced framing section, which allows accurate
positioning of four shutter blades on a 100% surface area in all positions, so that the
user can frame any object regardless of the luminaire’s position. HURACÁN PROFILE S
is provided with an amazingly complete graphical system with one 7-position wheel
for interchangeable effects cassettes or gobos. The wheel is fitted with 5 rotating
gobos and 2 effects cassettes that can create dynamic effects by superimposing
two complementary inverted images in counter rotation (patent pending). A second
interchangeable gobo wheel is equipped with 7 rotating gobos. A monochromatic
multi-position effects wheel allows horizontal, vertical or axial scrolling for creating
flame, water or radiant effects (patent pending). A multi-layer CMY wheel can generate
multicolour effects. The gobos, cassettes and effects wheel are made of high-definition
tempered glass. Additionally, standard features in HURACÁN PROFILE S include a
15-blade iris diaphragm, a light and a heavy frost filter, 2 rotating prisms, a 5-facet
circular and a 4-facet linear prism. HURACÁN PROFILE S is the ultimate graphical
tool for applications requiring power and refinement.
