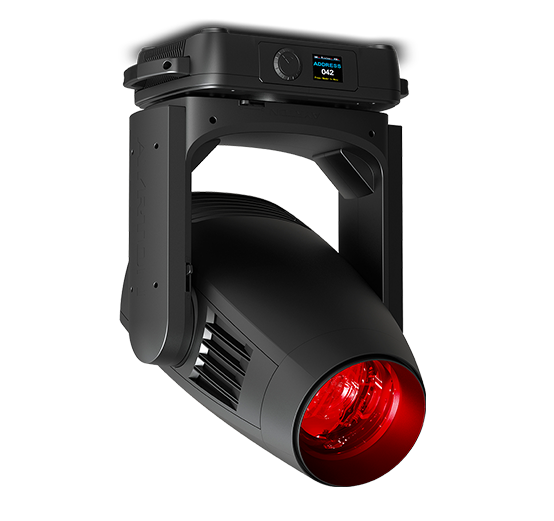

HURACÁN PROFILE TC is a marvel of technology that brings exceptional light output
to a standard-equipment luminaire in a class by itself – a formidable graphical tool
for enhancing creativity. Devised specifically for applications that require perfect
colour reproduction, HURACÁN PROFILE TC is equipped with an entirely new LED
module using a light source calibrated at 6800 K with a native colour rendering index
greater than 95, and extremely high TM30 readings. For this exceptional luminaire,
AYRTON has developed an entirely new complex colour mixing system with a double
CMY saturation level capable of generating 281 trillion colours (patent pending). A
triple variable colour temperature corrector allows subtle adjustment from 2700 K to
9000 K and offers noticeable CRI improvement. Designed to project complex graphical
effects, HURACÁN PROFILE TC boasts specifically developed optics that deliver an
extremely uniform flat beam with no hot spot and reproduce high-definition images.
The proprietary optical system, equipped with a 178 mm frontal lens, uses 13 lenses,
producing an 10:1 zoom ratio and a zoom range of 6° to 60°.
HURACÁN PROFILE TC offers an advanced framing section, which allows accurate
positioning of four shutter blades on a 100% surface area in all positions, so that the
user can frame any object regardless of the luminaire’s position. HURACÁN PROFILE TC
is provided with an amazingly complete graphical system with one 7-position wheel
for interchangeable effects cassettes or gobos. The wheel is fitted with 5 rotating
gobos and 2 effects cassettes that can create dynamic effects by superimposing
two complementary inverted images in counter rotation (patent pending). A second
interchangeable gobo wheel is equipped with 7 rotating gobos. A monochromatic
multi-position effects wheel allows horizontal, vertical or axial scrolling for creating
flame, water or radiant effects (patent pending). A multi-layer CMY wheel can
generate multicolour effects. The gobos, cassettes and effects wheel are made of
high-definition tempered glass. Additionally, standard features in HURACÁN PROFILE TC
include a 15-blade iris diaphragm, a light and a heavy frost filter, 2 rotating prisms,
a 5-facet circular and a 4-facet linear prism. Fitted with a next-generation oversized
cooling system HURACÁN PROFILE TC is the ultimate graphical tool for applications
requiring power and refinement.
