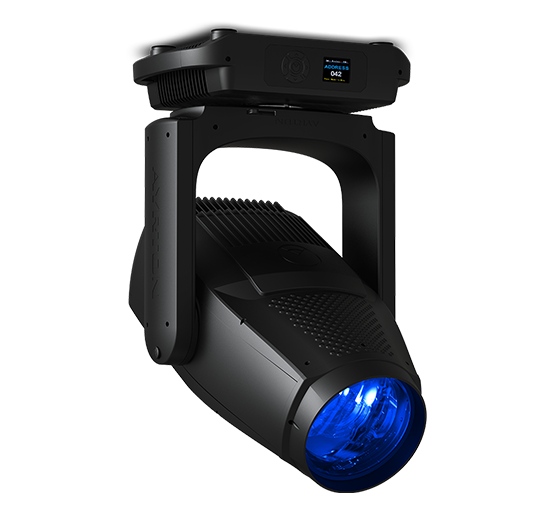

DOMINO LT is the first all-terrain LED luminaire in the “LT” (Long Throw) range designed
for intensive outdoor use in long-distance applications requiring high precision.
To create this extreme luminaire unrivalled on the market, AYRTON has used “XXL”
225 mm-diameter frontal optics weighing 7 kg that can obtain an ultra-intensive beam.
The proprietary optical system has 13 lenses, delivering a 15:1 zoom ratio and a zoom
range of 3.5° to 53°. DOMINO LT was developed to cope with the most extreme
conditions, able to acclimate to all types of environments and endure rapid climate
change. For this purpose, DOMINO LT has borrowed from the style and minimalist design
of DOMINO PROFILE, incorporating full weather-proofing features while ensuring total
accessibility to the luminaire’s internal functions. With its new die-cast aluminium
frame, the luminaire uses the same base, reducing its visual footprint to a minimum.
For greater efficiency, DOMINO LT has a highly effective next-generation, oversized
cooling system fitted with six submersible fans outside its weatherproof enclosure.
Equipped with an all-new high-efficiency 1,000 W LED module, DOMINO LT
delivers a record luminous flux of 51,000 lumens at a colour temperature of 6700 K.
DOMINO LT adopts the complex colour mixing system of HURACÁN PROFILE, offering
a double level of CMY saturation that can obtain 281 trillion colours (patent pending)
and a triple corrector for variable colour temperature that allows subtle adjustment
from 2700 K to 15000 K and significant CRI improvement. Fitted with multiple optical
tools for shaping light, DOMINO LT is factory-equipped with a linear progressive frost
system, a lightweight frost filter, and two image-multiplying rotating prisms: one is
linear with four facets and the other is circular with five facets. The framing section
enables precise positioning of each shutter blade on a 100% surface area. The effects
section includes two superimposed rotating gobo wheels each with seven gobos,
a 15-blade iris diaphragm, a monochromatic multi-position effects wheel, and an
RGB and CMY effects wheel for unique multicolour effects. DOMINO LT is a unique
luminaire designed to face the most extreme conditions... It is the ultimate tool for
stadiums and large arenas.
