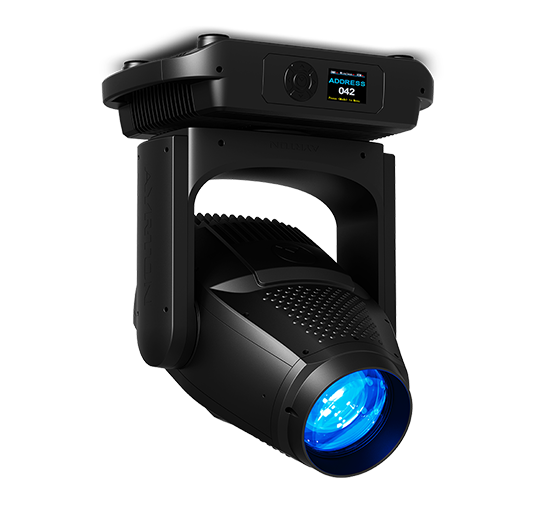

PERSEO PROFILE S is the first compact multi-function luminaire with an IP65 enclosure
rating developed by AYRTON for intensive outdoor use. Equipped with a new 500 W
ultra-compact monochromatic LED source calibrated at 8000 K, it can deliver metallic
white light with an output of 30,000 lumens. AYRTON has specifically developed the
optics in PERSEO PROFILE S to achieve an optimal resolution-to-performance-to
efficiency ratio. They allow perfect image reproduction and significant improvement
from distortion caused by the shutter blades with wide zoom. The optics produce a
highly uniform flat beam with no hot spot, achieving a perfect colour mix regardless
of the colour combination selected. Fitted with a 148 mm frontal lens, this proprietary
system has 13 lenses, delivering an 8:1 zoom ratio and a zoom range of 7° to 58°.
AYRTON has endowed this next generation luminaire with a new minimalist design
in lighter weight die-cast aluminium, incorporating full weather-proofing features that
ensure easy accessibility. For greater efficiency, PERSO PROFILE S is provided with
a highly effective phase-change liquid cooling system fitted with four submersible
fans located outside the watertight enclosure.
The ultimate in versatility, designed for multiple outdoor and indoor applications,
PERSEO PROFILE S boasts feature-rich standard equipment including a subtractive
CMY colour mixing system combined with a variable CTO and a wheel with six
complementary colours that produces an infinite palette of vivid pastels and saturated
colours. The framing section allows accurate positioning of four shutter blades on a
100% surface area in all positions, so that the user can frame any object regardless
of the luminaire’s position. The image section includes 18 interchangeable HD glass
gobos on two wheels: one rotating wheel with seven positions and one fixed wheel
with eleven positions. The effects section includes a continuous dynamic effects
wheel; a 15-blade iris diaphragm; two frost filters, one soft edge, one hard edge; and
two rotating prisms, one circular with 5 facets and one linear with 4 facets. PERSEO
PROFILE S presents a sleeker, updated, industrial design, with perfectly straightened
yoke arms, a minimalist base and a new water-resistant menu navigation system.
PERSEO PROFILE S can be controlled by DMX-RDM, ArtNet™ or a wireless link using
CRMX TiMo RDM from LumenRadio™.
