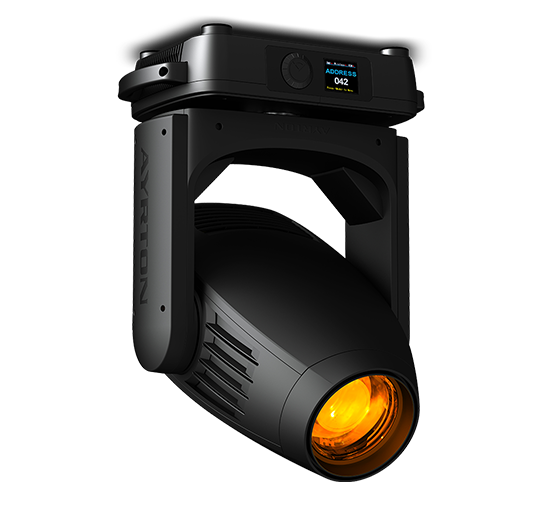

GHIBLI S is AYRTON’s first LED spot luminaire that is factory-equipped with a framing
system designed to offer lighting designers unlimited creative possibilities without any
compromise. Fitted with a LED module using a high-output, low-etendue monochromatic
light source calibrated at 8000 K, GHIBLI S delivering powerful metallic white light
with output of 23,000 lumens and a colour temperature of 7000 K in a highly compact
format. The proprietary optical system, equipped with a 137 mm frontal lens, has
13 high-quality lenses, delivering an 8:1 zoom ratio and a zoom range of 7° to 56°.
The optics produce an extremely uniform flat beam with no hot spot. The selection
of gobos and colours was made in collaboration with lighting designers to meet the
needs of the entertainment industry.
AYRTON has concentrated its expertise into one, single fixture GHIBLI S to offer
you a maximum of possibilities. Think versatile. Think Ghibli. Standard features on
GHIBLI S include a CMY colour mixing system combined with a variable CTO and a
six-position complementary colour wheel to produce in an infinite palette of pastels
and saturated colours. The luminaire is fitted with an entirely new filter for optimising
the colour rendering index. The framing system allows each frame to be positioned
with precision on a 100% surface area in all positions. The effects section includes
two wheels with interchangeable HD glass gobos: one with seven rotating and the
other with eight fixed gobos; a continuous dynamic effects wheel; an iris diaphragm;
two frost filters and a five-facet rotating prism. GHIBLI S is equipped with a new,
highly effective phase-change liquid cooling system using a heat pipe.
