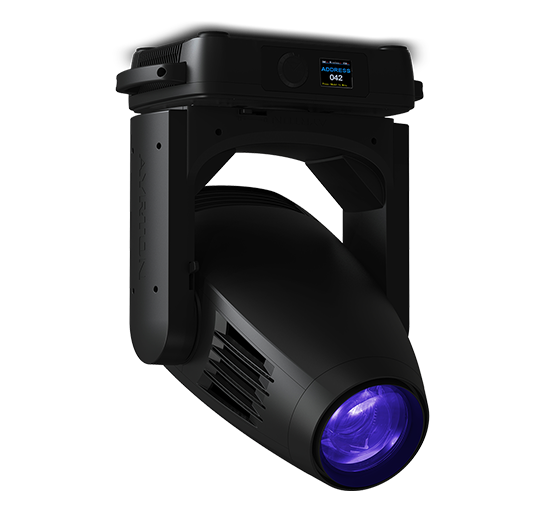

AYRTON has once again pushed the limits with a newly designed “profifile” luminaire...
KHAMSIN TC... squeezing a 750 W LED module into the highly compact GHIBLI format,
while offering 60% more light output. To make the luminaire this compact, AYRTON
has completely redesigned its internal structure by using cast aluminium sides. The
size of the cooling system also had to be dramatically reduced and made even more
efficient. This high-end luminaire also features a double rotating gobo wheel on a
single axis that will allow you to achieve astonishing high-definition morphing effects.
The proprietary optical system, fitted with 13 lenses, features a 158 mm frontal lens
and delivers an 8:1 zoom ratio and a zoom range of 7° to 58°. The high-quality optics
offer excellent image reproduction and produce an extremely uniform flat beam with
no hot spot, ensuring a perfectly homogeneous colour mix regardless of the colour
combination selected.
Devised specifically for applications that require perfect colour reproduction, KHAMSIN TC
is equipped with an entirely new LED module using a monochromatic light source
with a native colour rendering index greater than 90, extremely high TM30 readings
and a colour temperature of 6400 K. Feature-rich from the factory, KHAMSIN TC
includes a CMY colour mixing system, which, combined with a variable CTO and one
wheel with six complementary colours, produces an infinite palette of vivid pastels
and saturated colours. The framing section allows accurate positioning of four shutter
blades on a 100% surface area in all positions, so that the user can frame any object
regardless of the luminaire’s position. The effects section includes two wheels with
six interchangeable HD glass gobos; a continuous dynamic effects wheel; a 15-blade
iris diaphragm; two frost filters: one light frost, one heavy frost; two rotating prisms:
one circular with 5 facets, one linear with 4 facets. KHAMSIN TC is the perfect lighting
solution for large venues, such as arenas and stadiums dedicated to major events.
