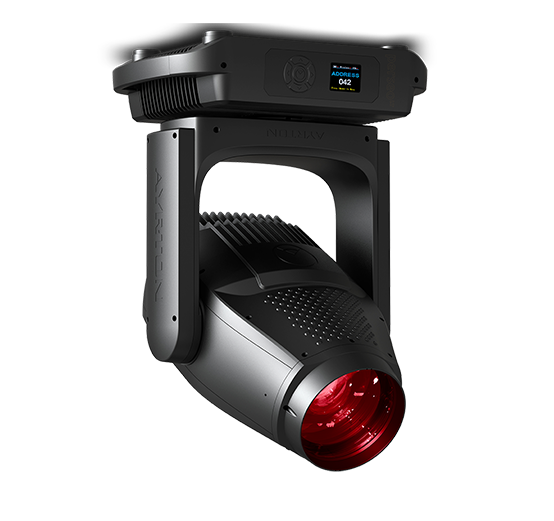

PERSEO BEAM is the first compact, waterproof multi-function beam effect LED luminaire.
Well-suited for use indoors as well as outdoors, the fixture is equipped with an
ultra-intensive 2° beam and 21x zoom ratio, making it an extraordinary tool that will
help you achieve some incredibly exciting effects. PERSEO BEAM is endowed with
unprecedented graphic capability, offering a wide choice of 48 fixed and rotating
gobos distributed on two wheels, including 28 glass gobos for the projection of high
definition images and 20 metal gobos specifically created to sculpt light in “beam”
mode. These gobos can be blended with four individually combinable rotating prisms
that allow you to produce a multitude of volumetric lighting effects. An RGB/CMY
multi-layer gobo lets you generate dynamic multicolour effects. An effect-wheel with
continuous rotation in both directions and two frost filters complete the PERSEO BEAM
tool palette. Continuous rotation of the pan movement multiplies the possibilities for
creating complex effects.
PERSEO BEAM is equipped with a highly innovative colour section including a CMY
colour mixing system, a progressive linear CTO, an instant-access multi-position
colour wheel supplied with four colour-temperature correction filters, and 13
complementary-colour filters on two concentric circles (patent pending). Fitted with a
168 mm frontal lens, the proprietary optical system uses 13 lenses, producing a zoom
range of 2° to 42°. A brand new ultra-compact 450 W monochromatic LED emitter
specially developed for long-distance applications can obtain a luminous flux of 18,000
lumens at a colour temperature of 6800 K operating at a steady state. PERSEO BEAM
borrows from the same minimalist design as PERSEO PROFILE, incorporating all the
waterproof features while being easily accessible and lightweight. The luminaire was
designed and developed to operate in the most extreme conditions and resist hot or
cold temperatures, rain, sand, dust. This new creation by AYRTON allows you full
expression without constraints or limits in a style that is your own.
