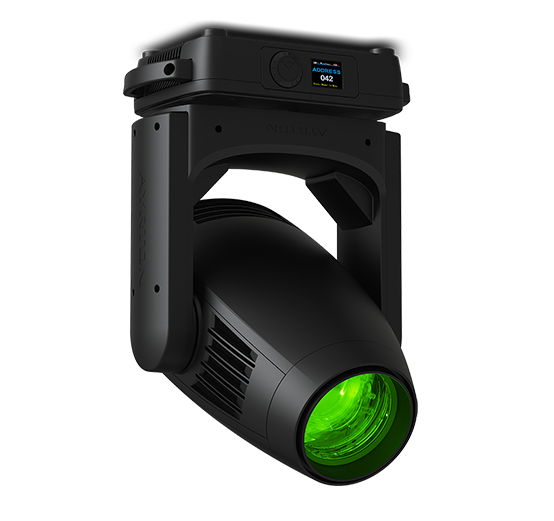

AYRTON’s latest innovation, DIABLO S, is a versatile, feature-rich 300 W profile
luminaire based on the ultra-compact MISTRAL format. The company has taken on
the ambitious challenge of making DIABLO S the smallest, lightest and most efficient
luminaire of its category. With a record output of 19,000 lumens and a total weight of
22 kg, DIABLO S is a powerhouse of technology that will tempt the most demanding
lighting designers. To achieve its objective, AYRTON has miniaturised the framing
system while maximizing the performance level. As in other profile luminaires of
the product line, the framing section allows accurate positioning of its four shutter
blades on a 100% surface area in all positions, so that the user can frame any object
regardless of the luminaire’s position. A new ultra-compact high-output 550 W power
supply feeds eight additional motors in the framing system, fitting into the original
MISTRAL format.
DIABLO S borrows the same 13-element proprietary optical system delivering an 8:1
zoom ratio with a zoom range of 7° to 53°. The 119 mm frontal lens can produce an
extremely uniform flat beam that can render images perfectly in all conditions and
at any beam angle. DIABLO S, specially designed for stage applications, is equipped
with a monochromatic LED light source that can generate extremely high output and
metallic white light calibrated at 7000 K. Fully equipped at the factory, DIABLO S
includes a CMY colour mixing system combined with a progressive CTO and a wheel
with seven complementary colours that produces an infinite palette of bright pastels
and saturated colours. The effects section includes a wheel with seven interchangeable
HD glass gobos, a continuous dynamic effects wheel, a 15-blade iris diaphragm, a
heavy frost filter and a five-facet circular rotating prism. DIABLO S has a highly efficient
phase-change liquid cooling system using a heat pipe that includes a particularly
effective ultra-silent ventilation mode, perfect for stage and studio applications.
