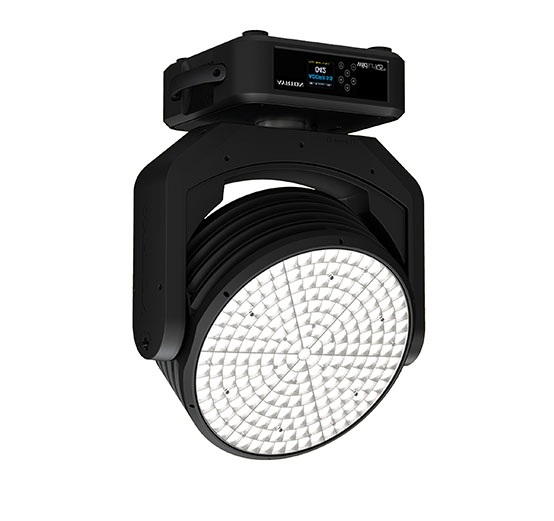

WILDSUN K25 TC

WILDSUN K25 TC


The new WILDSUN K25 TC is an evolution of the WILDSUN K25, specially geared to
shooting and broadcasting in high-definition. Producing extremely high-quality light
without flickering, this luminaire achieves a colour temperature perfectly calibrated
at 5700 K and a colour rendering index greater than 92. This is the only LED luminaire
capable of measuring up to the classic Fresnel HMI 4,000 W and 6,000 W lights in
terms of pure output. The new WILDSUN K25 TC is particularly suitable for meeting
the stringent lighting demands of sporting events, fashion shows, car shows or any
prestigious events requiring high-quality light and perfectly rendered colour. Fitted
with 217 LED emitters, the luminaire delivers more than 63,000 lumens of overall
output with 40% less energy consumption.
WILDSUN K25 TC is a powerhouse of technology and innovation. With the same basic
specifications as the WILDSUN K25, it is equipped with powerful tri-phase stepper
motors that allow fast, accurate and silent positioning. Its optical zoom has a 5:1
ratio with a zoom range of 12° to 60°. Luminous intensity can be fine-tuned using the
precision electronic dimmer, for even greater flexibility of use. The light fixture output
is equipped with a protective holographic filter in polycarbonate and an honeycomb
system to prevent glare. The user can control each concentric circle individually to
adjust the luminaire’s power accordingly or, for stage lighting, create dynamic effects.


OPTICS
• 5:1 zoom ratio
• Beam aperture: 12° to 60°
• 408 mm front lenses cluster
LIGHT SOURCE
• 217 x 600 lumens 5700 K LED source
• Luminaire output: up to 63,000 lumens
• CRI: greater than 92
• Rated life (L70): up to 40,000 hours
• Flicker-free source
MOVEMENT
•Highly accurate positioning
• Resolution: 8- or 16-bit
• Smooth movement
• Pan and tilt with automatic repositioning
• Range: 540° (pan), 245° (tilt)
COLOURS
•Monochromatic daylight source
• Perfectly calibrated at 5700 K
EFFECTS
•Graphical effects capabilities
• Eight LED concentric circles
• Built-in pattern effects
DIMMER / STROBE
• Electronic dimmer from 0 to 100%
• Strobe effect: 1 to 25 flashes per second
HARDWARE FEATURES
•Graphic LCD display with flip function
• 6 menu buttons to set the functions
• Integrated LumenRadio™ receiver
• XLR 5 pin connectors
• etherCON RJ45 connectors
• powerCON TRUE1 connector
CONTROL
•DMX 512 protocol
•DMX-RDM compatible
• Stand-alone mode, local control panel
•ArtNet™ & sACN protocol
• 5 DMX modes (11 to 22 DMX channels)
POWER SUPPLY
• 100 to 240 Volts – 50/60 Hz
• Power: 1,600 W maximum
COOLING SYSTEM
•Advanced liquid cooling system
• Self-adjusting variable speed fans
• Selectable ventilation user modes
• Excess-temperature protection
HOUSING
• Skeleton in aluminium and steel plates
•Moulded covers in ABS PC (V0 class)
• Two-side handles
• Four heavy-duty feet
• IP20 protection rating
• Exterior finish: black (Carbon)
INSTALLATION
• Two Omega ¼ turn brackets
• Eight ¼ turn mounting points
• Safety cable attachment point
OPERATING PARAMETERS
•Maximum temperature: 45 °C (113 °F)
•Minimum temperature: -10 °C (14 °F)
•Minimum usage distance: 3.0 m (9.84 ft)
COMPLIANCE
• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU
SIZE
• Product: 547 x 702 x 348 mm (l x h x d)
• Foam: 627 x 725 x 414 mm (l x h x d)
WEIGHT
• Product: 36.5 kg
PRODUCT CODE
• 013830: WILDSUN K25 TC
