Optics

　　2-elements 5:1 zoom high-resolution optic system

　　Beam aperture: 8° to 40°

　　Fast motorised linear zoom

　　170 mm front lenses cluster

　　Light source

　　19 x 500 lumens RGBW High-Power LED source

　　Total luminaire output: up to 4,000 lumens

　　Rated life (L70): up to 40,000 hours

　　Flicker free sources management, suitable for TV applications and all video recorded events

　　Movement

　　Extremely accurate positioning

　　Moving-head operated via either 8- or 16-bit resolution

　　High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.

　　Pan and tilt automatic repositioning

　　Moving-head range : 540° (pan), 270° (tilt)

　　Colours

　　Sophisticated 4 colours RGBW mixed, reaching high Colour

　　Rendering Index

　　Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues

　　4.29 billion colours (8 bit resolution)

　　Virtual colour wheel, including most usuals white colour temperature presets

　　Dynamic colour macro effect with variable speed

　　Effects

　　Graphical effects capabilities

　　Effects can be coupled with beam, wash or matrix applications

　　Built-in pattern effects with speed and fade controls for scenic applications

　　Dimmer / strobe

　　Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation

　　White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

　　Software features

　　Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel

　　Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller

　　Information menu including hour counter, temperature, software version

　　Hardware features

　　Graphic LCD display for addressing and special functions settings, with flip function

　　6 menu buttons to set the functions

　　Excess temperature protection

　　XLR 5 pin male and female connectors for DMX connection

　　powerCON TRUE1 male and female connectors for power connection

　　Control

　　DMX 512 protocol, through DMX cable or wireless system

　　DMX-RDM compatible

　　Stand-alone mode and Master/Slave modes

　　Local control panel, with LCD display

　　Choice of 3 DMX Modes (from 17 to 28 DMX channels)

　　Power supply

　　Electronic supply with active PFC

　　100 to 240 Volts – 50/60 Hz

　　Power 400 W maximum

　　Cooling system

　　Advanced cooling system

　　Self adjusting variable speed fans for quiet operation (Auto mode)

　　Selectable auto, stage & studio ventilation modes

　　Safety protection against temperatures excesses

　　Housing

　　Moving-head skeleton made of aluminium and steel metal plates

　　Heatsinks in aluminium

　　Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)

　　Two sides handles for transportation

　　Four heavy-duty feet for better stability

　　IP20 protection rating

　　Exterior finish: black (Carbon)

　　Installation

　　Fastening brackets system: one Omega ¼ turn brackets designed for use with standard clamps

　　Mounting points: two ¼ turn locking fittings allowing installation of Omega brackets on luminaire

　　Safety cable attachment point

　　Operating parameters

　　Operating positions: all (device on floor or fixed to a support)

　　Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)

　　Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)

　　Minimum usage distance: 1.0 m (3.28 ft)

　　Compliance

　　EU (EMC):

　　EMC Directive 2014/30/EU

　　EU (LVD):

　　LVD Directive 2014/35/EU

　　US Safety:

　　UL 1573

　　Size

　　Product: 288 x 380 x 220 mm (l x h x d)

　　Flight-case Foam : 350 x 410 x 280 mm (l x h x d)

　　Weight

　　Product: 9.1 kg

　　Product codes

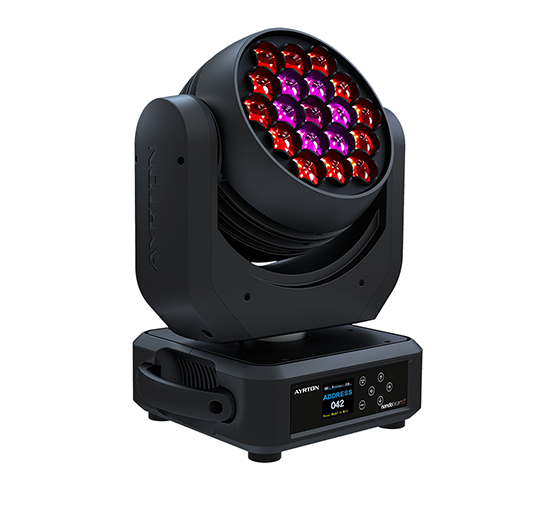

　　013350 : NANDOBEAM S3 WASH LUMINAIRE
