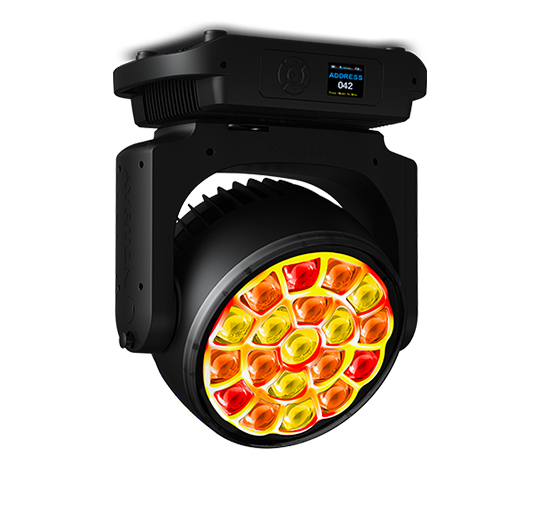

ARGO 6 FX

ARGO 6 FX

Bringing you a sensation of freedom has always been one of AYRTON's most sincere
promises. For the first time in its history, AYRTON is launching a weather-sealed effects
luminaire that offers as much creative potential indoors as outside - ARGO 6 FX. This
luminaire presents a minimalist design incorporating features for total protection
against harsh weather with easier internal access, and its front window, made of
highly resistant and exceptionally transparent polycarbonate with a V-0 protection
rating, is designed to ensure optimal visuals. The placement of pan & tilt motors in
the base and head of the luminaire avoids the constraint of weatherproofing the yoke
arms. A new submersible ventilation system in a non-waterproof compartment allows
for optimal cooling. Due to a new composite alloy, reduction in thickness of the parts,
an optimised cooling system, simplified lens guidance, and integration of low-density
optical components, AYRTON has been able to reduce overall weight by 20%.


OPTICS
• 2 elements 14:1
• Beam aperture: 4° to 56°
• 19 x 50 mm truncated frontal lens
• 280 mm front lens cluster
LIGHT SOURCE
• 19 x 1,000 lumens RGBW LED sources
• Luminaire output: up to 13,000 lumens
• CRI: up to 86
• Rated life (L70): up to 40,000 hours
• Flicker-free sources
MOVEMENT
•Highly accurate positioning
• Resolution: 8- or 16-bit
• Smooth movements.
• Pan and tilt automatic repositioning
• Range: 540° (pan), 270° (tilt)
COLOURS
• Sophisticated 4 colours RGBW mixed
• 4.29 billion colours (8-bit resolution)
• Virtual colour wheel
•Dynamic color macro effect
EFFECTS
• 2D & 3D graphical effects capabilities
• Built-in pattern effects
• Ring control
DIMMER/STROBE
• Electronic dimmer from 0 to 100%
• Strobe effect: 1 to 25 flashes per second
HARDWARE FEATURES
•Graphic LCD display with flip function
• 5 menu buttons to set functions
• IP65 XLR 5 pin connectors
• IP65 etherCON RJ45 connectors
• IP65 powerCON TRUE1 TOP connector
CONTROL
•DMX 512 protocol
•DMX-RDM compatible
• Stand-alone mode local control panel
•ArtNet™ & sACN protocol
• 3 DMX modes (26 to 67 DMX channels)
POWER SUPPLY
• 100 to 240 Volts - 50/60Hz
• Power: 800 W maximum
COOLING SYSTEM
•Advanced cooling system
• Self adjusting variable speed fans
• Selectable ventilation users modes
• Excess-temperature protection
HOUSING
• Skeleton in aluminium
• Base in die-cast aluminium
•Heatsinks in aluminium
•Moulded covers in ABS PC (V0 class)
• Two sides handles
• Four heavy-duty feet
• IP65 protection rating
• Exterior finish: black (Carbon)
INSTALLATION
• Two Omega 1/4 turn brackets
• Eight 1/4 turn mounting points
• Safety cable attachment point
OPERATING PARAMETERS
•Maximum permitted: 45°C (113°F)
•Minimum permitted: -20°C (-4°F)
•Minimum usage distance: 2.0 m (6.56 ft)
COMPLIANCE
• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU
•US Safety: UL 1573, FCC Part 15,
Subpart B: 2018
SIZE
• Product: 436 x 538 x 293 mm (l x h x d)
• Foam: 485 x 560 x 350 mm (l x h x d)
WEIGHT
• Product: 22 kg
PRODUCT CODE
• 019640 : ARGO 6 WASH
