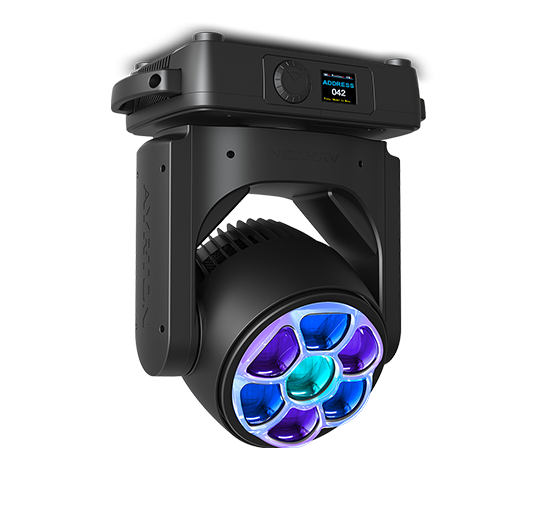

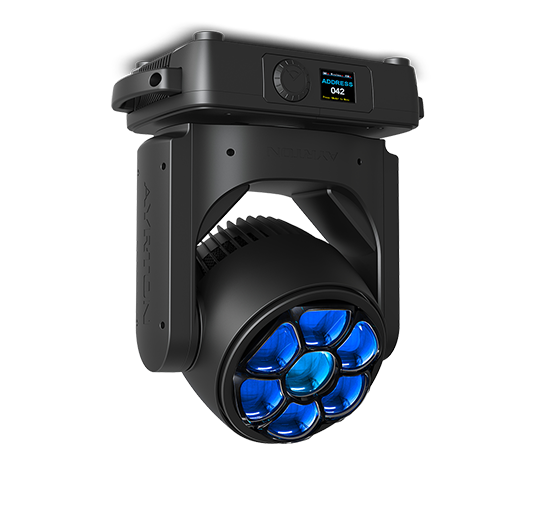

Akin to the ZONDA 9, the latest addition to the ZONDA family designed for stage
lighting is an incredibly compact luminaire with unlimited creative potential. ZONDA 3
is a versatile fixture with amazing effects that can switch from beam to wash with
great ease. Its speed of movement and reduced dimensions increase its dynamic
potential. Because of its size, it is easy to use in compositions with curtains or
matrices. Fitted with seven high-performance 40 W LED sources with RGB+W, ZONDA
3 offers a proprietary optical system made up of a unique 170 mm mono-block cluster
in PMMA, which enhances beam coherence, and seven glass light guides with an
output surface that has an optical micro-structure. A 50 mm truncated transmitting lens
whose optical surface is equivalent to that of a 70 mm round lens, enables ZONDA 3
to obtain a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of
4° to 56°. This LED/optical system combination is capable of producing light output of
5,200 lumens and a perfectly homogeneous mixture of pastel and saturated colours
regardless of the colour combination chosen.
