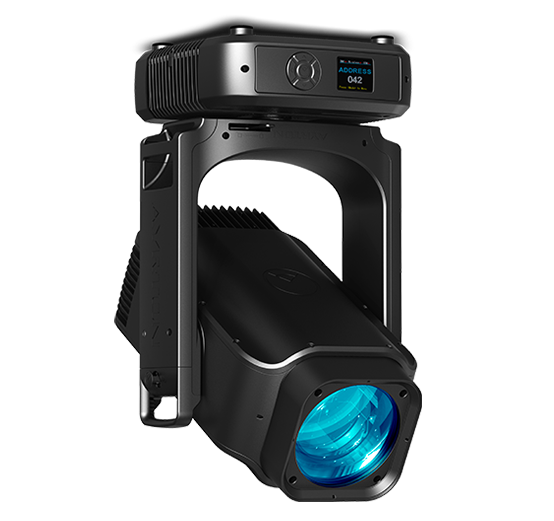

RIVALE PROFILE

RIVALE PROFILE

The automotive world has always been a valuable source of inspiration for AYRTON.
Pushing the limits requires attention to detail, using innovative materials and
state-of-the-art technology, and a maximum reduction in weight for accomplishing
exceptional feats. Weight determines performance. RIVALE PROFILE weighs only 27 kg.
This light-weight luminaire, AYRTON'S most versatile to date, is capable of outstanding
performance unprecedented for a product in this category. Developed for mixed use
indoors and outdoors and in all conditions, RIVALE PROFILE, with its unique visual
signature, is unparalleled on the market. RIVALE PROFILE has been designed to push
the limits of versatility. It foreshadows the style of our future line and establishes the
AYRTON name as a "no-compromise" brand. Equipped with a 160 mm frontal lens,
RIVALE PROFILE can produce an ultra-intensive beam of 4° close to that of AYRTON'S
famous "LT" versions. The proprietary optical system has 13 lenses, delivering an
13:1 zoom ratio and a zoom range of 4° to 52°. It offers continuous rotation of the
pan and tilt movement.


OPTICS
• 13-element 8:1 zoom
• Beam aperture: 6.9° to 57°
• 138 mm frontal lens
LIGHT SOURCE
• 20,500 lumens 7000 K light engine
• Luminaire output: up to 15,000 lumens
• Colour temperature output: 6000 K
• CRI: greater than 90
• Rated life (L70): up to 40,000 hours
• Flicker-free source
MOVEMENT
•Highly accurate positioning
• Resolution: 8- or 16-bit
• Smooth movement
• Pan and tilt with automatic repositioning
• Range: 540° (pan), 263° (tilt)
COLOURS
• Sophisticated CMY colour mixing
• Variable CTO
• 7 complementary colours
GOBOS
• 7 indexable rotating metallic gobos
•Adjustable-speed rotating gobo
•Gobo diameter: 25.5 mm
• Image diameter: 19.0 mm
BARNDOORS
• 4 individual shutter blades
• Positionable on 100% of the surface area
• Rotation of the module: +/- 45°
IRIS DIAPHRAGM
• 15-blade iris diaphragm
• Range: 15% to 100% open
FROST
• 0% to 100% variable linear frost
DIMMER / STROBE
• Electronic dimmer from 0 to 100%
• Strobe effect: 1 to 25 flashes per second
HARDWARE FEATURES
•Graphic LCD display with flip function
• Clicking jog wheel to set functions
• Integrated LumenRadio™ receiver
• XLR 5 pin connectors
• powerCON TRUE1 connectors
CONTROL
•DMX 512 protocol
•DMX-RDM compatible
• Stand-alone mode, local control panel
• 3 DMX modes (29 to 50 DMX channels)
POWER SUPPLY
• 100 to 240 Volts – 50/60 Hz
• Power: 550 W maximum
COOLING SYSTEM
•Advanced liquid cooling system
• Self-adjusting variable speed fans
• Selectable ventilation user modes
• Excess-temperature protection
HOUSING
• Skeleton in aluminium and steel plates
• Base in die-cast aluminium
•Moulded covers in ABS PC (V0 class)
• Two-side handles
• Four heavy-duty feet
• IP20 protection rating
• Exterior finish: black (Carbon)
INSTALLATION
• Two Omega ¼ turn brackets
• Four ¼ turn mounting points
• Safety cable attachment point
OPERATING PARAMETERS
•Maximum temperature: 45 °C (113 °F)
•Minimum temperature: -10 °C (14 °F)
•Minimum usage distance: 1.5 m (4.92 ft)
COMPLIANCE
• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU
•US Safety: UL 1573 & FCC Part 15,
Subpart B: 2018
SIZE
• Product: 365 x 632 x 212 mm (l x h x d)
• Foam: 430 x 660 x 280 mm (l x h x d)
WEIGHT
• Product: 22 kg
PRODUCT CODE
• 010250: LEVANTE TC
